Accessories
LIGHT SOURCES
Cordin light sources are designed to produce high intensity, square wave pulses where one pulse will cover the full record length of the camera.
Model | Flash Duration | Light Output | Operating Voltage | Flash Heads |
605 | 0.5 to 20 milliseconds | 2M lux @ 2m | 600 V to 900 V | One or two |
606 | 600 microseconds | 5.7M lux @ 2m | 800 V to 1800 V | One |
607 | 300 microseconds | 100M lux @ 2m | 4.7 kV to 6.0 kV | One |
TIME DELAY GENERATORS
Cordin time delay generators have a clear user interface, high voltage outputs, and resolution down to 10 nanoseconds. They can be operated either through the front panel or through a graphical interface via ethernet connection.
Model | Channels | Range | Step Size | High Voltage Output |
454 | 4 | 1 nanosecond – 99.99 milliseconds | 1 ns | +30, +60, +90 or +125 V |
458 | 8 | 1 nanosecond – 99.99 milliseconds | 1 ns | +30, +60, +90 or +125 V |
463 | 2 in, 4 out | Proportional Time Delay Generator | n/a | n/a |
HIGH VOLTAGE TRIGGER PULSER
Cordin's Model 640 high voltage pulser is the industry standard for reliable, definite triggering of energetic events.
Model | Input Trigger | Output Voltage | Response Time | Jitter |
640 | TTL or +50V | +750V to 5kV (max) | 2.2 usec | 6 ns |
CAMERA DOLLIES
Cordin manufactures camera dollies specifically designed to be used with our cameras. We also make a range case for using the cameras in harsh environments.
Model | Type | Camera Models Supported |
1500 | Adjustable Mobile Cart | 560, 580, 131, 131-HD, 222 |

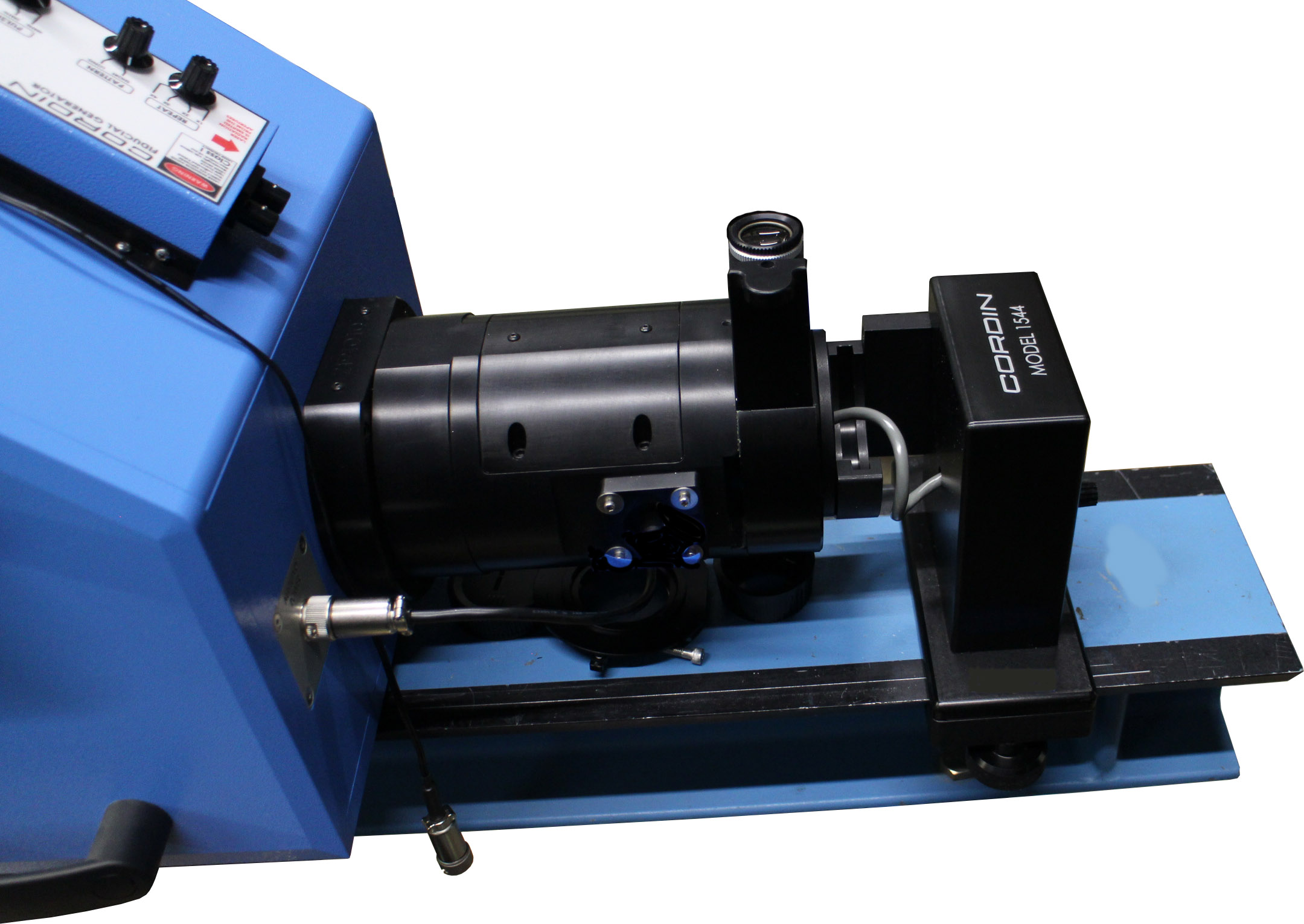

CALIBRATION TOOLS
Cordin offers calibration tools for some camera models, enabling customers to keep their systems in optimum operating condition.
Model | Type | Camera Models Supported |
1540 | 131 Series Calibration Kit | 131, 131-HD, 131-UHD |
